Description
Product Features
Stable Radio Network Communication
Supports radio transceivers using the MAP27 protocol, ensuring reliable and uninterrupted communication.
Two-Way Text Messaging
Enables secure text communication between the control center and the vehicle.
Route and Station Management
Allows direct dialing of the previous station, next station, and regional dispatcher based on the vehicle’s geographic location.
Radio Call Recording and Storage
Equipped with voice-activated (VOX) recording and stores call data on SD and EMMC memory for later review.
Intelligent GPS System
Logs location, time, and speed data every 10 seconds within GPS coverage areas.
Automatic GPS Status Notification
Automatically notifies the system of GPS signal status and synchronizes the device clock based on geographic time data.
Smart Alert System
Automatically sends alerts to the control center in case of GPS disconnection, SD memory failure, or battery issues.
Linux-Based Operating System
Fully compatible with existing software and customizable to meet specific user requirements.
Advanced Connectivity
-
Ethernet Port: For data transfer and device programming
-
Wi-Fi Support: IEEE 802.11 b/g/n/e/i
-
Bluetooth: Version 4.2
-
Mobile Networks: Compatible with GSM / 3G / 4G for high-speed communication
-
HDMI Port: High-quality video output for external displays
Technical Specifications
-
Processor: 32-bit ARM, 1GHz
-
Operating System: Linux
-
Power Supply: 8V to 36V DC with reverse polarity protection
-
Display: 7-inch color LCD with adjustable (auto/manual) backlight
-
Built-in Keyboard
-
Memory: 1GB DDR3 + 8GB EMMC, supports SD cards up to 64GB
-
Communication Interfaces: RS232, RS485, USB Host, USB Device, Ethernet, HDMI
-
Integrated GPS: Includes module and antenna, supports NMEA 0183 protocol
-
Programming & Updates: Via RS485 and Ethernet
-
Internal Buzzer: For system alerts
-
Internal Battery: 3V, rechargeable and replaceable
-
Independent RTC: Built-in battery and dedicated crystal for accurate timekeeping
-
Cooling System: Fanless design for quiet and reliable operation

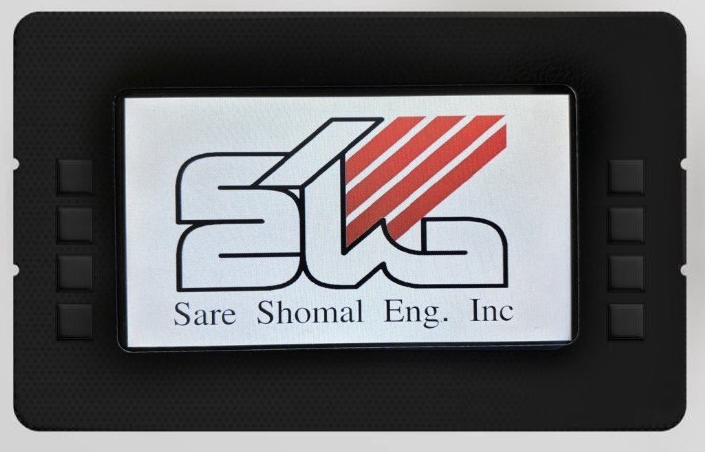

Product Overview
The Mobile Data Terminal (MDT), equipped with cutting-edge communication technologies and powered by the Linux operating system, is a comprehensive and advanced solution for fleet management, real-time tracking, secure communication, and versatile data transmission. Designed for mission-critical environments, it significantly enhances operational safety, efficiency, and coordination across transportation and dispatch systems.
